This page will introduce two ideas for fuzzy programming giving fuzzy-implementations of conditional and repetition statements.

Fuzzy rules are usually formed in the form

         IF fuzzy condition THEN result

where the result depends on the fuzziness of the condition. This page introduces generalizations for the standard control statements found in programming languages, including if-then-else conditional statements and while repetition statements. Other control statements such as the switch statements and for loops are special cases of these two control statements. Also presented are a Maple implementation of an interpreter which converts functions using these Boolean-logic condition/repetition statements into functions using control statements which display the presented fuzzy behaviour.

Thus, this page is broken into two sections:

Conditional Statements, and
Repetition Statements.

Conditional Statements

Consider the following Boolean-logic conditional statement (using C-style coding):

      if ( Boolean condition ) {
          // do something         Body 1
      } else {
          // do something else    Body 2
      }

The Boolean condition evaluates to either true or false and the corresponding body, Body 1 or Body 2, respectively, is executed. Any statement in Body 1 may use the assumption that the Boolean condition evaluated to true, and any statement in Body 2 may use the assumption that the Boolean condition evaluated to false.

The parallel fuzzy-logic statement would be:

      if ( fuzzy condition ) {
          // do something         Body 1
      } else {
          // do something else    Body 2
      }

but because the fuzzy value is not Boolean, but any number in the continuum [0, 1], one must ask which body should be executed. We will look at two possibilities:

The wrong (probabilistic) approapch, and
A parallel approach.

The Wrong Implementation

The wrong approach is to interpret the fuzzy value as a probability: if the fuzzy condition evaluates to a value 0 ≤ p ≤ 1, then execute Body 1 with probability p, otherwise execute Body 2. This, however, does not use the fuzzy approach.

A Reasonable Interpretation

Consider the following example where we have a fuzzy condition evaluated (the membership of x in a fuzzy set F. Initially, the result is the empty fuzzy set 0, i.e., μ_S(x) ≡ 0. Then, based on the membership, ξ, of x in F, we union R₁ with the and with ξ; and based on the negation of that membership, we union R₂ with the and with ~ξ:

      fuzzy_set S = 0;  // S is the 0 (empty) fuzzy set

      if ( μ_F(x) ) {
           S = S ∪ (μ_F(x) ∩ R₁);
      } else {
           S = S ∪ (~μ_F(x) ∩ R₂);
      }

Here:

~ is the fuzzy not operation (usually ~ξ = 1 − ξ),
any fuzzy value ξ may be interpreted as the fuzzy set with a constant member function μ_S(x) ≡ ξ,
the fuzzy union of two fuzzy sets S and T, S ∪ T, is the fuzzy set with member function μ_S∪T(x) = μ_S(x) ∨ μ_T(x) (usually = max( μ_S(x), μ_T(x) ) ), and
the fuzzy intersection of two fuzzy sets S and T, S ∩ T, is the fuzzy set with member function μ_S∩T(x) = μ_S(x) ∧ μ_T(x) (usually = min( μ_S(x), μ_T(x) ) ).

In this case, it would appear obvious that both bodies must be executed. This information must accessible within the statements within the executed body. To solve this, we will introduce a variable thisfuzzy.

The Environment Variable thisfuzzy

Recall that, using Boolean logic, if any statement inside Body 1 is executed, it must be true that the Boolean conditional evaluated to true, and if any statement inside Body 2 is executed, it implies that the condition evaluated to false. Using fuzzy logic, the fuzzy value of the conditional statement may take on any value in (0, 1] for the first body to run, and in [0, 1) for the second statement to run. Thus, each body must have access to the result of that fuzzy evaluation, and thus we introduce a special variable thisfuzzy. This variable is set to 1 (true) when any code is initially run and may take on smaller values inside any conditional statement.

The implementation of the variable thisfuzzy could be applied as is shown in the following code:

      fuzzy_value thisfuzzy = μ_F(x);

      fuzzy_set S = 0;

      if ( thisfuzzy > 0 ) {
           S = S ∪ (thisfuzzy ∩ R₁);  // Body 1
      }

      if ( ~thisfuzzy > 0 ) {
           S = S ∪ (~thisfuzzy ∩ R₂);  // Body 2
      }

Aside: note that we do not execute Body 1 if the fuzzy result is equal to 0 (false), and we do not execute Body 2 if the result equals 1 (true).

Because, for example, conditional statements may be nested, it is more correct track and reset the value of the fuzzy variable thisfuzzy as is shown in the following implementation:

      fuzzy_value thisfuzzy = 1;

      // other code....

      fuzzy_value thisfuzzy_old = thisfuzzy;

      thisfuzzy = thisfuzzy_old ∧ μ_F(x) );

      if ( thisfuzzy > 0 ) {
           S = S ∪ (thisfuzzy ∩ R₁);
      }

      thisfuzzy = thisfuzzy_old ∧ ~μ_F(x) );

      if ( thisfuzzy > 0 ) {
           S = S ∪ (thisfuzzy ∩ R₂);
      }

      thisfuzzy = thisfuzzy_old;

Maple Implementation

The Maple implementation of this is through a function called FuzzifyProcedure. The author writes Maple code in the standard manner, using standard conditional statements, and then passes the procedure to the function FuzzifyProcedure which returns a procedure which then modifies S appropriately.

> restart;
> with(FuzzySets):
> with( RealDomain ):
> S := 0;

S := 0

> F := Lambda( 1, 2, 3 ):

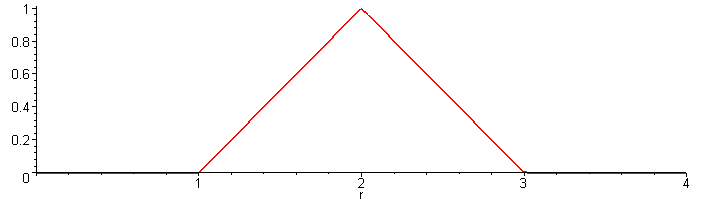

> plot( F, 0..4, thickness = 2 );

[Maple Plot]

> R1 := L( 5, 7 ):
> R2 := Gamma( 5, 7 ):

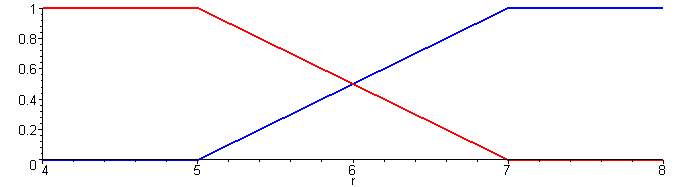

> plot( [R1, R2], 4..8, 0..1, color = [red, blue], thickness = 2 );

[Maple Plot]

> f1 := proc( x ) global S, F, R1, R2; if ( x in F ) then print( thisfuzzy ); S := S union (thisfuzzy intersect R1); else print( thisfuzzy ); S := S union (thisfuzzy intersect R2); end if; end proc:
> f2 := FuzzifyProcedure( f1 ):
> f2( 1.3 );

> S;

PIECEWISE([.3, r < 5.6],[.5*r-2.5, r <= 6.4],[.7, otherwise])

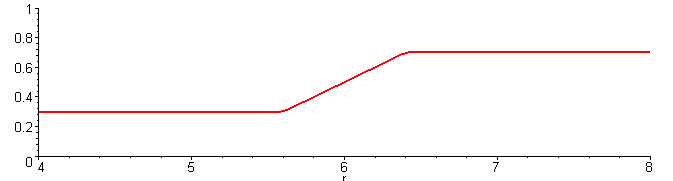

> plot( S, 4..8, 0..1, thickness = 2 );

[Maple Plot]

Notice that there are two values printed: 0.3 and 0.7, so both bodies of the conditional statement are executed. Initially, S was the 0 (empty) fuzzy set, but after the execution of the fuzzified procedure f2, S is the union of the two appropriately-truncated fuzzy sets.

Repetition Statements

Next we will look at a repetition statement in the form of a while loop. A Boolean-logic repetition statement is based on the form

      while ( Boolean condition ) {
          // do something         Body 3
      }

The statements in Body 3 are executed until the Boolean condition evaluates to false. Each time the statements in the body are executed, it is certain that for the current iteration and for all previous iterations, the Boolean condition evaluated to true.

In this case, the fuzzy equivalent should have similar features. As a first approximation, one might consider notation such as

      while ( fuzzy condition ) {
          // do something         Body 3
      }

The body of the loop is executed until the fuzzy condition evaluates to 0. This, however, will be shown to be unsatisfactory.

Using the same approach as before, the repetition statement

      int i = 0;
      S = 0;  // S is the 0 (empty) fuzzy set

      while ( μ_F(i); ) {
           S = S ∪ (μ_F(i) ∩ R_i);
           ++i;
      }

would be converted to

      int i = 0;
      S = 0;  // S is the 0 (empty) fuzzy set

      while ( true ) {
           thisfuzzy_old = thisfuzzy;

           thisfuzzy = μ_F(i) ∧ thisfuzzy;

           if ( thisfuzzy == 0 ) {
               thisfuzzy = thisfuzzy_old
               break;
           }

           S = S ∪ (thisfuzzy ∩ R_i);

           thisfuzzy = thisfuzzy_old
           ++i;
      }

Unfortunately, this is both:

very easy to code without without any special features, and
it does not take into account previous evaluations of the fuzzy condition.

The second observation is the critical one: consider the following Boolean repetition statement:

      int i = 0;

      while ( i != 10 ) {
          cout << i << endl;
          ++i;
      }

Here, the Boolean condition is true for all values of i > 10, however, the body of the loop is never executed for for any such value. Similarly, if the fuzzy value of a particular iteration is small, then the fuzzy value of any subsequent iteration should be no greater. The logical implementation would be to make the variable thisfuzzy the fuzzy and of all previous iterations, as is demonstrated here:

      fuzzy_set S = 0;  // S is the 0 (empty) fuzzy set

      int i = 0;
      fuzzy_value thisfuzzy = thisfuzzy;

      while ( true ) {
           thisfuzzy = thisfuzzy ∧ μ_F(i);

           if ( thisfuzzy == 0 ) {
               break;
           }

           S = S ∪ (thisfuzzy ∩ R_i);
           ++i;
      }

      thisfuzzy = thisfuzzy_old;

Maple Implementation

The Maple implementation FuzzifyProcedure takes the condition of a Maple while loop and converts it into the aforementioned fuzzy version. The function L(a, b) constructs a fuzzy set which is 1 for x < a, 0 for x > b, and linear between (a, 1) and (b, 0). The function Λ(a, b, c) constructs a fuzzy set which is 0 outside [a, c] and piecewise linear between (a, 0), (b, 1), and (c, 0).

> restart;
> with(FuzzySets):
> with( RealDomain ):
> S := 0; # the empty fuzzy set

S := 0

> F := L( 4, 9 ):

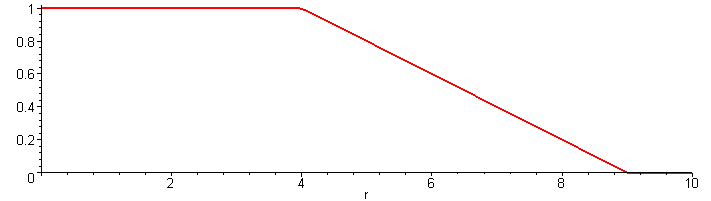

> plot( F, 0..10, thickness = 2 );

[Maple Plot]

> f1 := proc() global S, F; local i; for i from 1 while i in F do # for ( int i = 1; μ_F(i); ++i ) print( thisfuzzy ); S := S union (thisfuzzy intersect Lambda( i - 1, i, i + 1 )); end do; end proc:
> f2 := FuzzifyProcedure( f1 ):
> f2();

4/5

3/5

2/5

1/5

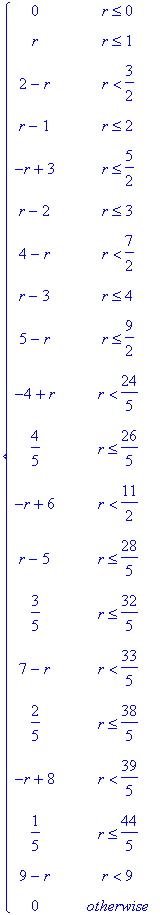

> S;

PIECEWISE([0, r <= 0],[r, r <= 1],[2-r, r < 3/2],[r-1, r <= 2],[-r+3, r <= 5/2],[r-2, r <= 3],[4-r, r < 7/2],[r-3, r <= 4],[5-r, r <= 9/2],[-4+r, r < 24/5],[4/5, r <= 26/5],[-r+6, r < 11/2],[r-5, r <= ...

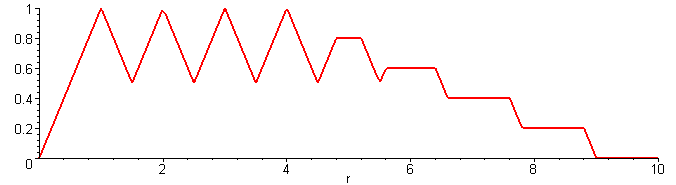

> plot( S, 0..10, 0..1, thickness = 2 );

[Maple Plot]

Instead of using the default associated class (a t-norm, an s-norm, and an appropriate complement) which uses the maximum and minimum functions to calculate fuzzy union and intersection, we can also consider the algebraic associated class where x ∧ y = xy and x ∨ y = x + y − xy. Using this associated class results in significantly different behaviour, as is shown in the following example:

> restart;
> with(FuzzySets):
> with( RealDomain ):
> Tools[UseClass]( algebraic ): # use the algebraic associated class
> S := 0; # the empty fuzzy set

S := 0

> F := L( 4, 9 ):
> plot( F, 0..10, thickness = 2 );

[Maple Plot]

4/5

3/5

2/5

1/5

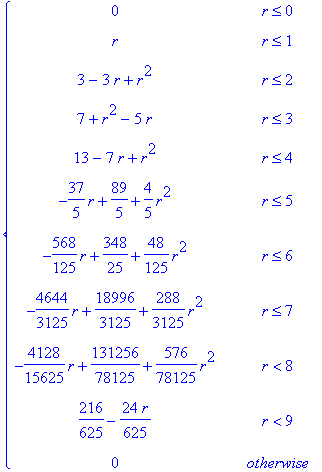

> S;

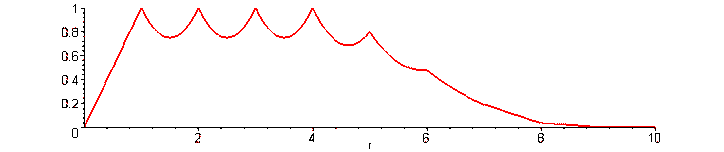

> plot( S, 0..10, 0..1, thickness = 2 );

[Maple Plot]

The linear decrease in the evaluated fuzzy conditional statements now translates into a decrease in the value of thisfuzzy which may be approximated by a decrease of the form e^−x²/10.

Summary

This page introduces two generalizations of Boolean-valued control statements and gives corresponding fuzzy-valued control statements, together with a demonstration of a working Maple implementation of these variations. As well, they allow for equivalent implementation of the standard IF-THEN fuzzy rule.
