The FuzzySets package allows the user to construct and work with fuzzy subsets of both the real line and of user-defined finite sets. Routines which automatically generate fuzzy controllers from a collection of user-defined rules are included. This allows you to model, test, and modify fuzzy systems in the familiar interactive Maple worksheet environment.

Fuzzy subsets of the real line are defined by functions mapping
**R** onto the range [0, 1] and are implemented using a modification
of the Maple `piecewise` function. Fuzzy subsets of a finite
universal set U are mappings from U onto [0, 1] and are implemented by
storing vectors of fuzzy values.

This packages tries as much as possible to treat fuzzy sets like
real sets. The operators **union** and **intersect**, to name
a few, are overloaded to accept fuzzy sets as well as classic Maple
sets. For example,

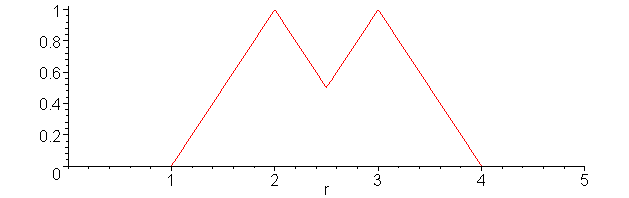

> with( FuzzySets[RealDomain] ): > plot( Lambda( 1, 2, 3 ) union Lambda( 2, 3, 4 ), 0..5 );

As this example shows, even the Maple `plot` routine has been
overloaded to work seamlessly with fuzzy sets.

Hand-in-hand with fuzzy sets is the underlying fuzzy logic. The
**FuzzySets[Logic]** subpackage overloads the various Boolean operators
(**and**, **or**, **not**, and **implies**) to work with
fuzzy values as well as with the default *true*, *false*, and *FAIL*
Boolean logic values available with Maple. In addition, the routine **evalb**
is overloaded to convert fuzzy values to Boolean values. Additional routines
with similar behaviour to routines already existing in Maple are also
included, e.g., **booleanum** is a routine similar to **signum** and
**evalfz** is similar to **evalb**. A veteran Maple user should
instantly feel familiar with these routines after a quick read of the
help pages, that is, if he or she cannot already guess their functionality
and behaviour.

The default intersection and union of fuzzy sets using the `min`
and `max` functions, as initially suggested by Dr. Zadeh. Since then,
this has been generalized to allow any bivariate function which satisfies
the conditions of a *t-norm* or an *s-norm* (*t-conorm*) to
define the result of a fuzzy intersection or union. This package comes with
the following additional *t*- and *s*-norms:

Many of these are parameterized, defining a continuum of related norms.

Fuzzy sets are often defined by piecewise functions, something which tends to be extremely tedious in Maple (or even on paper) -- making sure that end points are aligned, etc. One of the nicest features of this package is an entire collection of constructors which help the user quickly define various commonly used fuzzy sets.

The four basic constructors, **L**, **Gamma**, **Lambda**, and
**PI** are named after the shapes which they construct
(L, Γ, Λ, and Π, respectively). The following shows how
quickly fuzzy sets may be constructed:

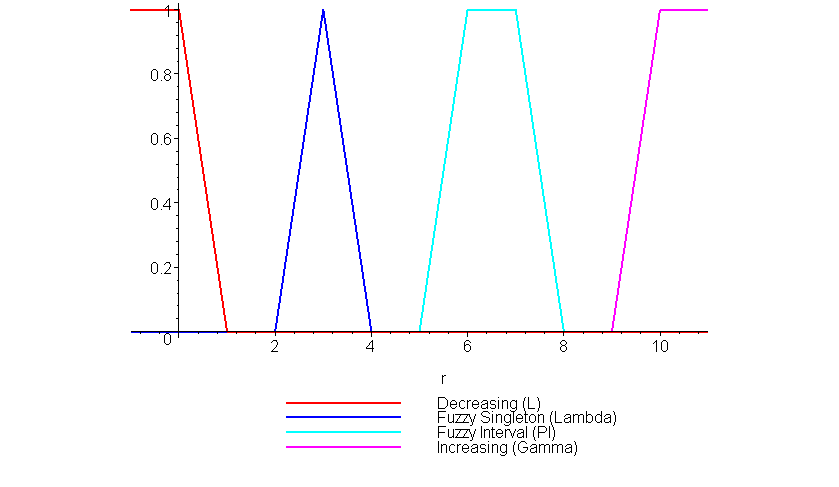

> with( FuzzySets[RealDomain] ): > plot( [ L( 0, 1 ), Lambda( 2, 3, 4 ), PI( 5, 6, 7, 8 ), Gamma( 9, 10 ) ], -1..11, thickness = 2, color = [red, blue, cyan, magenta], legend = ["Decreasing (L)", "Fuzzy Singleton (Lambda)", "Fuzzy Interval (PI)", "Increasing (Gamma)"], );

In addition to the default linear model, numerous other forms
of fuzzy sets may be constructed by indicating the *models* to
be used. For
example, the **quadratic** model constructs fuzzy sets as defined by
Zadeh's S-functions:

> with( FuzzySets[RealDomain] ): > plot( [ L( 0, 1, model = quadratic ), Lambda( 2, 3, 4, model = quadratic ), PI( 5, 6, 7, 8, model = quadratic ), Gamma( 9, 10, model = quadratic ) ], -1..11, thickness = 2, color = [red, blue, cyan, magenta], legend = ["Decreasing (L)", "Fuzzy Singleton (Lambda)", "Fuzzy Interval (PI)", "Increasing (Gamma)"], );

Additional models are based on crisp sets; cubic polynomials; and rational (Beta), exponential, arctangent, and hyperbolic-tangent functions.

The **Partition** constructor allows you to quickly partition
an interval into a sequence of fuzzy sets:

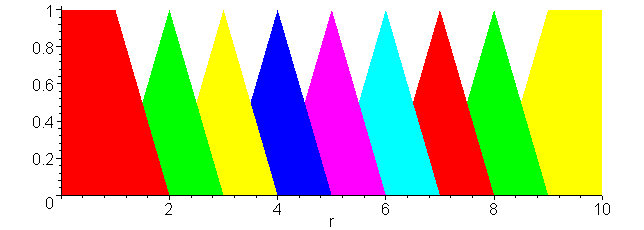

> with( FuzzySets[RealDomain] ): > plot( [Partition( 1, 2, 3, 4, 5, 6, 7, 8, 9, shouldered = true )], 0..10, filled = true );

Defining fuzzy sets on finite domains is done through the
**FuzzySets[FiniteDomain]** routine. This routine takes as an
argument a set of points and returns a package designed specifically
to interact with fuzzy subsets of that set. By constructing different
packages, the user may work with fuzzy sets on numerous different domains
simultaneously. In addition, the returned packages are optimized to
work on the specified domain.

Fuzzy controllers take input variables (observables) and, based on a
set of rules, and construct controlling response.
The `Controller` routines allow the user to define a set of
rules which are then quickly converted to a Maple procedure that takes
the observables as input and returns the calculated response.

Both Mamdani and Sugeno forms of fuzzy rules may be used. If a demand
is made, the author can also provide the Tsukamoto form of fuzzy rules.
Both zeroth-order and higher-order Sugeno forms are implemented. The
fuzzy inferences used with the Mamdani form of fuzzy rules includes both
Mamdani and Gödelian combinations. The first includes the minimum and product
inferences whereas the second includes Dienes-Rescher, Lukasiewicz, and
Zadeh inferences. The forms and inferences used may be quicly changed
simply by updating options passed to the **Controller** routine.

One of the most interesting features of the package is a routine
**FuzzifyProcedure**. This takes a procedure containing conditional
and repetition statements based on Boolean logic and converts them into
statements based on fuzzy logic. This makes it possible for more than
just the body associated with just one conditional expression in an
`if-elif-...-else-end if` statement to be execute. The user may
query the weight with which each body is executed by accessing the local variable
**thisfuzzy**. Note, this does not present probabilistic behaviour.
As a quick example, consider the routine:

> with( FuzzySets[RealDomain] ): > f := proc(x) S := 0; # the empty set if x in Lambda( 1, 2, 3 ) then S := S union (thisfuzzy intersect Lambda( -3, -1, 1 )); elif x in Lambda( 2, 3, 4 ) then S := S union (thisfuzzy intersect Lambda( -1, 1, 3 )); else S := S union (thisfuzzy intersect Lambda( -2, 0, 2 ); end if; S; end proc: > g := FuzzySets[FuzzifyProcedure]( f ):

Normally, such a routine could not work: the test of membership of
`x` in the fuzzy set `Lambda( 1, 2, 3 )` returns a fuzzy
value in [0, 1]. If Maple were to try to execute this, it would
generate an `invalid boolean expression` error. By fuzzifying
this procedure, it is possible for the constructed routine `g`
to execute all three bodies of the *if*
statement with various weights. The specific weight for each body
is computed dynamically and accessed through the `thisfuzzy` local
variable.

The FuzzySets package comes with over **150** help pages, including
numerous example worksheets, routine help pages, and explanations (or *details*)
covering the various aspects of fuzzy sets and fuzzy logic. The explanations
cover the following topics:

- An introduction to fuzzy logic,
- An introduction to fuzzy sets,
- Various models for defining fuzzy sets (also described above),
- Operations on fuzzy sets,
- T-norms,
- S-norms,
- The complement of fuzzy sets,
- Associated classes,
- Fuzzy implication,
- Fuzzy propositions,
- Fuzzy rules,
- Fuzzy inference,
- Function approximations using fuzzy sets,
- Completeness of a collection of fuzzy sets, and
- Consistency of a collection of fuzzy sets.

Some help pages have been converted to *html* format for your inspection:

- A Quick Introduction to the Mathematics of Fuzzy Sets
- An Introduction to the RealDomain Package
- An Introduction to Fuzzy Controllers
- The
*intersect*Operator Help Page - Details of t-Norms
