# Introduction

In this method, we find a technique for finding an
interpolating polynomial which may be found in a simple-to-program
manner, and allows fast, numerically-stable evaluation.

# Background

Useful background for this topic includes:

# References

# Theory

With Lagrange polynomials, we found the interpolating polynomial
by taking each point *x*_{i} and finding a polynomial
*y*_{i}L_{i}(*x*) with the property that:

*y*_{i}L_{i}(*x*_{i}) = *y*_{i}, and
*y*_{i}L_{i}(*x*_{j}) = 0 for *j* ≠ *i*.

This technique is the most easily implemented by humans (at least for linear and quadratic interpolating polynomials),
but is also the least useful programatically. Also, if we found
the Lagrange polynomial passing through the points
(*x*_{1}, *y*_{1}), ..., (*x*_{n}, *y*_{n}),
this gives us very little information for finding the Lagrange polynomial which
passes through these *n* points together with a new point (*x*_{n + 1}, *y*_{n + 1}).

Let us, however, use this idea: given *n* points, how do we find
the polynomial which passes through the given *n* points and another point
(*x*_{n + 1}, *y*_{n + 1})?

To demonstrate this, we will find the interpolating quadratic polynomial which
passes through the three points in Figure 1.

Figure 1. Three points to be interpolate.

We will do this by finding a sequence of polynomials
p_{0}(*x*),
p_{1}(*x*), and
p_{2}(*x*) of degrees 0, 1, and 2 where the last will
interpolate all three points.

### Constant (*n* = 1)

To do this, let us start from the beginning with a single point
(*x*_{1}, *y*_{1}). The polynomial passing
through this point is p_{0}(*x*) = *y*_{1}.
For the sample points, p_{0}(*x*) = 2 is shown in Figure 2.

Figure 2. Constant interpolant through the first point.

### Linear (*n* = 2)

Having found p_{0}(*x*), we will find p_{1}(*x*) by
defining a polynomial Δp_{1}(*x*) such that:

- Δp
_{1}(*x*_{1}) = 0
- Δp
_{1}(*x*_{2}) = *y*_{2} − p_{0}(*x*_{2})

The first requirement makes it quite clear that the delta-polynomial must be of the
form Δp_{1}(*x*) = *c*_{2}(*x* − *x*_{1}).
We will use the second condition to determine *c*_{2}:

*c*_{2}(*x*_{2} − *x*_{1}) = *y*_{2} − *y*_{1}
Dividing through by *x*_{2} − *x*_{1}, we get:

Given the example points, *c*_{2} = (-4 − 2)/(3 − 1) = -3, and Figure 3 shows p_{0}(*x*) = 2 in blue, Δp_{1}(*x*) = 2 − 3(*x* − 1) in
magenta, and summing these together, we get that p_{1}(*x*) passes through both the
first and second points.

Figure 3. Linear interpolant through the first and second points.

### Quadratic

Given that the function p_{2}(*x*) passes through two points,
we want to find a function Δp_{2}(*x*) such that
p_{2}(*x*) = p_{1}(*x*) + Δp_{2}(*x*) passes through
all three points.

Again, to be zero at the first two points, Δp_{2}(*x*) = *c*_{3}(*x* − *x*_{1})(*x* − *x*_{2}), and therefore we
use p_{2}(*x*_{3}) = p_{1}(*x*_{3}) + Δp_{2}(*x*_{3}) = *y*_{3}
to determine *c*_{3}:

To simplify the algebra, we will add 0 = -*y*_{2} + *y*_{2} and 0 = *x*_{2} − *x*_{2} in two places
in the right-hand side of this equation:

Isolating *c*_{3}, we get:

The second and fourth terms cancel each other yeilding

By taking a common denominator, we get

Notice that the numerator is the difference between two

*y*_{21} = (*y*_{2} - *y*_{1})/(*x*_{2} - *x*_{1})

*y*_{32} = (*y*_{3} - *y*_{2})/(*x*_{3} - *x*_{2})

And finally, we could define:

*y*_{321} = (*y*_{32} - *y*_{21})/(*x*_{3} - *x*_{1})

Then we note that
*c*_{1} = *y*_{1},
*c*_{2} = *y*_{21}, and
*c*_{3} = *y*_{321}; and
therefore, the Newton interpolating polynomial is:

p_{2}(*x*) = *y*_{1} + *y*_{21}(*x* - *x*_{1}) + *y*_{321}(*x* - *x*_{1})(*x* - *x*_{2}).
In general, if we define

then the interpolating Newton polynomial of degree *n* − 1 is

p_{n − 1}(*x*) =
*y*_{1} +
*y*_{21}(*x* − *x*_{1}) +
*y*_{321}(*x* − *x*_{1})(*x* − *x*_{2}) + ···
*y*_{n···321}(*x* − *x*_{1})(*x* − *x*_{2})···(*x* − *x*_{n − 1})

# HOWTO

# Problem

Find a Newton interpolating polynomial which passes through
*n* points (*x*_{1}, *y*_{1}), ..., (*x*_{n}, *y*_{n}), that is, find the coefficients of the polynomial

# Assumptions

The *x* values are unique.

# Process

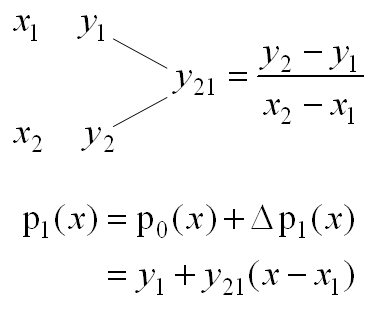

Figure 4. Finding the interpolating linear polynomial.

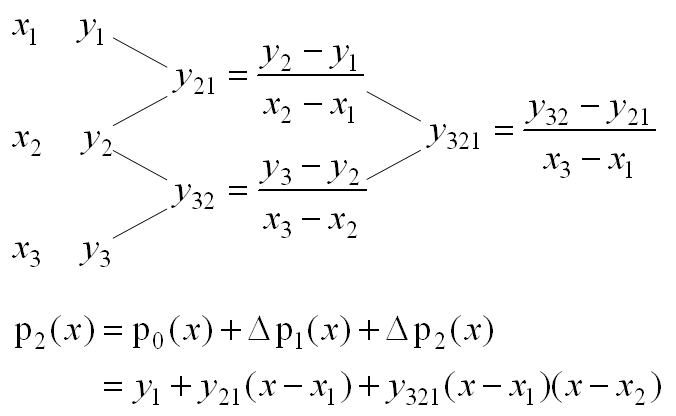

Figure 5. Finding the interpolating quadratic polynomial.

Figure 6. Finding the interpolating cubic polynomial.

Figure 7. Finding the interpolating quartic polynomial.

Figure 8. Highlighted coefficients for the interpolating polynomial in Figure 7.

# Error Analysis

The error, in general is similar to that of the Vandermonde method,
but it has better characteristics and is not subject to the same unknown catastrophic cancellation
the Vandermonde method is subject to. The next topic on Horner's rule shows how to evaluate Newton
polynomials.

# Examples

1. Find the Newton polynomial which interpolates the points (2, 2), (3, 1), (5, 2).

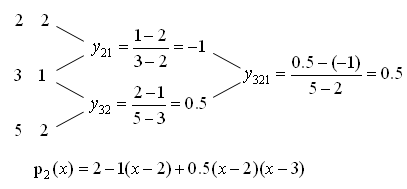

Figure 9. The table for finding the Newton polynomial interpolating (2, 2), (3, 1), (5, 2).

Therefore, the interpolating polynomial is
p_{2}(*x*) = 2 − (*x* − 2) + 0.5 (*x* − 2)(*x* − 3).

2. Find the polynomial which interpolates the points (-2, -39), (0, 3), (1, 6), (3, 36).

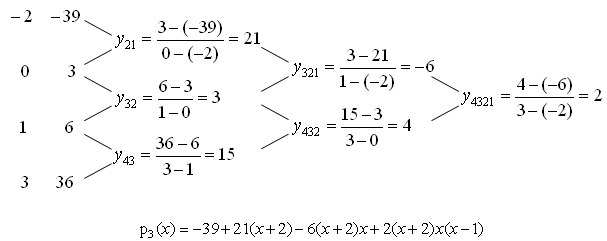

Figure 10. The table for finding the Newton polynomial interpolating (-2, -39), (0, 3), (1, 6), (3, 36).

Therefore, the interpolating polynomial is
p_{3}(*x*) = -39 + 21 (*x* + 2) − 6 (*x* + 2)*x* + 2 (*x* + 2)*x*(*x* − 1).

3. Use Matlab to find the polynomial which interpolates the points
(-3.2, 4.5), (-1.5, 0.5), (0.3, 0.6), (0.7, 1.2), (2.5, 3.5).

>> x = [-3.2, -1.5, 0.3, 0.7, 2.5]';
>> y = [ 4.5, 0.5, 0.6, 1.2, 3.5]';
>> p = y;
>> for i = 1:(length(x) - 1)
p( (i + 1):end ) = (p( (i + 1):end ) - p( i:(end - 1) )) ./ (x( (i + 1):end ) - x( 1:(end - i) ));
end
p

4. Why are the memory requirements of the code in Example 3 **O**(*n*)?

Only three arrays of size *n* = 5 and one of size *n* = 4 are allocated. All
other computations are done using already existing entries in the vector p.

5 Suppose we have found the Newton polynomial which interpolates the
points (1, 4), (3, -2), (4, 10), (5, 16) using the triangle:

1 4
-3
3 -2 5
12 -2
4 10 -3
6
5 16

Use this table to calculate the interpolating polynomial passing through
the points (3, -2), (4, 10), (5, 16), (7, 34) using the least possible
number of differences and divisions.

In this case, we already have part of the tree:

3 -2
12
4 10 -3
6
5 16
7 34

Therefore, we only need fill in the remaining 3 entries:

3 -2
12
4 10 -3
6 1
5 16 1
9
7 34

Thus, the interpolating polynomial is p(*x*) = -2 + 12(*x* - 3) - 3(*x* - 3)(*x* - 4) + (*x* - 3)(*x* - 4)(*x* - 5).

# Questions

# Question 1

Find the Newton polynomial which interpolates the points (2, 3) and (5, 7).

Answer: p(*x*) = 3 + 4/3 (*x* - 2)

# Question 2

Find the Newton polynomial which interpolates the points (-2, 21), (0, 1), (1, 0), (3, -74).

Answer: p(*x*) = 21 - 10(*x* + 2) + 3(*x* + 2)*x* - 3(*x* + 2)*x*(*x* - 1).

# Question 3

Find the Newton polynomial which interpolates the points (1, 5), (2, 7), (4, 11), (6, 15).

Answer: p(*x*) = 5 + 2(*x* - 1)

# Question 4

Use Matlab to find the Newton polynomial which interpolates the points

(1.3, 0.51), (0.57, 0.98), (-0.33, 1.2), (-1.2, 14), (2.1, -0.35), (0.36, 0.52)
Answer: The coefficients are 0.51, -0.6438, -0.2450, -3.3677, 1.0159, 0.8223.

# Question 5

Must the *x* values be ordered from smallest to largest for the method to find Newton polynomials to work?

# Applications to Engineering

Newton polynomials provide a technique which allows an interpolating
polynomial of *n* points to be found in **O**(*n*^{2}) time but only **O**(*n*) space.
Horner's rule provides a very efficient method of evaluating these polynomials.

# Matlab

Newton interpolating polynomial may be found easily in Matlab:

>> x = [1.2 1.5 1.9 2.5 2.6]';
>> y = [0.5 0.3 0.5 0.2 0.7]';
>> ys = y;
>> for i=2:length(ys)
ys(i:end) = (ys(i:end) - ys((i - 1):(end - 1))) ./ (x(i:end) - x(1:end - i + 1));
end
>> ys
ys =
0.50000
-0.66667
1.66667
-2.05128
7.21659

This creates a vector containing the coefficients of the Newton
polynomial.

We could replace the body of the for loop with the shorter version using the `diff` statement:

>> for i=2:length(ys)
ys(i:end) = diff( ys(i - 1:end) ) ./ (x(i:end) - x(1:end - i + 1));
end

# Maple

Finding an interpolating polynomial with Maple may be done with the
`PolynomialInterpolation` routine:

CurveFitting[PolynomialInterpolation]( [[0.3, 1.5], [0.4, 1.7], [0.6, 2.5]], x, form=Newton );
plot( %, x = 0..1 );

For more help on either of this routine or on the CurveFitting
package, enter:

?CurveFitting
?CurveFitting,PolynomialInterpolation

# BLAS

The basic linear algebra subroutine (BLAS) for
for finding the coefficients of the Newton polynomial is

int gsl_poly_dd_init( double dd[], double xs[], double ys[], int N );

This example finds the coefficients of the
Newton polynomial interpolating the stated points

#include <stdio.h>
#include <gsl/gsl_poly.h>
/*************************************************
* Find the Newton polynomial coefficients
*************************************************/
#define N 5
int main() {
/* The points
(0.1, 1.2), (0.5, 2.7), (0.7, 3.8), (1.2, 4.7), (1.5, 6.0) */
double xs[N] = {0.1, 0.5, 0.7, 1.2, 1.5};
double ys[N] = {1.2, 2.7, 3.8, 4.7, 6.0};
/* The coefficients of the newton polynomial. */
double dd[N];
gsl_poly_dd_init( dd, xs, ys, N );
int i;
for ( i = 0; i < N; ++i ) {
printf( "%5.10lf ", dd[i] );
}
printf( "\n" );
return 0;
}

To compile and execute this code, you must have the GNU Scientific Library
installed on your system, either in cygwin or in Linux. The example below looks at how you compile this code
in Cygwin:

$ gcc -Wall -I/usr/include newton.c -lgsl -lgslcblas -lm
$ ./a.exe

The output is

1.2000000000 3.7500000000 2.9166666667 -7.4567099567 11.3636363636

This can be seen to be the correct result by calculating the
divided difference table:

0.1 1.2
3.7500
0.5 2.7 2.9167
5.5000 -7.4567
0.7 3.8 -5.2857 11.364
1.8000 8.4524
1.2 4.7 3.1667
4.3333
1.5 6.0

Reference: GNU Scientific Library,
6.2 Divided Difference Representation of Polynomials.
