Suppose we are given a period during which the next product
cycle is scheduled and there
are n possible projects for selection. Assume that for each project,
the project manager has estimated the number of weeks that the project is
expected to take and marketing has estimated the expected increase in
revenue as a result of implementing the project. In general, the
total time required to complete all the projects is often far in excess
of the time available. The questions is: How do we, as a first approximation,
select which projects should be scheduled?
Selecting Projects
Testing all possible combinations of n projects may be prohibitively
expensive. A backtracking algorithm may be more efficient; however, we
will look at an 0(n ln(n)) greedy algorithm:
Greedy by Time
The critical component is the time constraint: with only a fixed
period, it may be reasonable to attempt to fit the largest project first,
followed by smaller projects. Such an algorithm would be termed
greedy by time.
Greedy by Expected Revenue
The actual goal, however, is to maximize revenue; therefore, it may
be a better idea to be greedy by revenue: select those projects which make
the most money first and continue to schedule the next highest
profitable project which still fits into the remaining time. Such an
algorithm would be termed greedy by expected revenue.
Greedy by Revenue Density
A best idea, however, is to attempt to maximize the amount of revenue
made per week of work. Thus, one would begin by scheduling that project
which makes the most per week that the project is worked on. As a first
approximation, this is better than either greedy by time or revenue as
it weighs both the constraint (the time limit) and the desirable
outcome (the expected revenue).
Example
As an example, consider the list of projects given in Table 1. Suppose we are given a 50 week product
cycle and it is required that we chose a subset of these projects to schedule over the next year (assuming two
weeks holiday per employee).
Project | Time (wk) | Revenue (1000$) |
---|
1 | 4 | 8 |
2 | 18 | 19 |
3 | 14 | 15 |
4 | 7 | 7 |
5 | 10 | 11 |
6 | 3 | 4 |
7 | 11 | 12 |
8 | 4 | 8 |
9 | 1 | 1 |
10 | 13 | 17 |
11 | 12 | 14 |
12 | 8 | 11 |
13 | 3 | 5 |
14 | 3 | 4 |
15 | 8 | 9 |
16 | 10 | 10 |
17 | 3 | 3 |
18 | 10 | 13 |
19 | 14 | 18 |
20 | 12 | 16 |
Greedy by time produces a list with Projects 2, 19, 3, and 1 for
a total of $60 000 spanning 50 weeks.
Greedy by expected revenue produces a list with Projects 2, 19, 10, 1, and
9 for a total of $63 000 spanning 50 weeks.
Greedy by expected revenue density, however, chooses
Projects 1, 8, 13, 12, 6, 14,
20, and 10 for a total of $73 000 spanning 50 weeks. In this example,
this is the optimal solution; however, this is not always guaranteed to
be the case.
Greedy by time or by expected revenue both focus on the
single largest project, Project 2; however, the expected revenue per
week worked on the project is only $1056.
Large Scale Examples
Figures 1 and 2 show the result of applying these strategies to
finding the total expected revenue for 100 projects with uniformly
randomly chosen times and expected revenues between 1 and 20. Because
there is no correlation between time or revenue, greedy by time does
the least to maximize the expected revenue with an average revenue of
50. Greedy by expected revenue does significantly better; however, in
all cases, greedy by expected revenue density does best. This is
clearly shown in Figure 2 which, for each set of projects, the
expected revenue of each scheme is plotted against the other and there
was not one case where even parity was met.

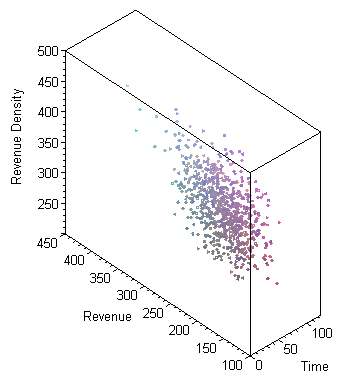

Figure 1. A plot of 800 trials
of random times and expected revenues chosen in [1, 20] showing
the projected total expected revenue of the three schemes plotted
against each other.

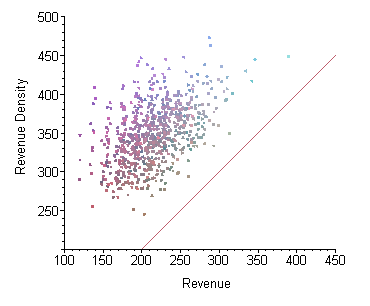

Figure 2. The same 800 trials as in Figure 1; however,
this figure only shows the projected total expected revenue of the
greedy-by-expected-revenue plotted against the total expected revenue of the
greedy-by-expected-revenue-density schemes.
Figure 3 shows how the three schemes work when there is a tighter
correlation between revenue with the time randomly chosen between
4 and 23 with the expected revenue being ±3 of this value. Again,
greedy-by-revenue-density always outperforms.
Figure 3. 800 trials
of random times chosen in [4, 23] and expected revenue being within ±3
of the time. The plot shows
the projected total expected revenue of the three schemes plotted
against each other.
Final Comments
As a comment: there are many other requirements associated with
project scheduling:
- The requirement for a banner project which may be used
to market the resulting product;
- The probability of certain projects to fail;
- The requirement for a certain number of projects not to fail, or, at least, to have a very small probability of failure;
- The need to prepare for future projects;
- The personal interest of certain executive officers of the company; etc.
